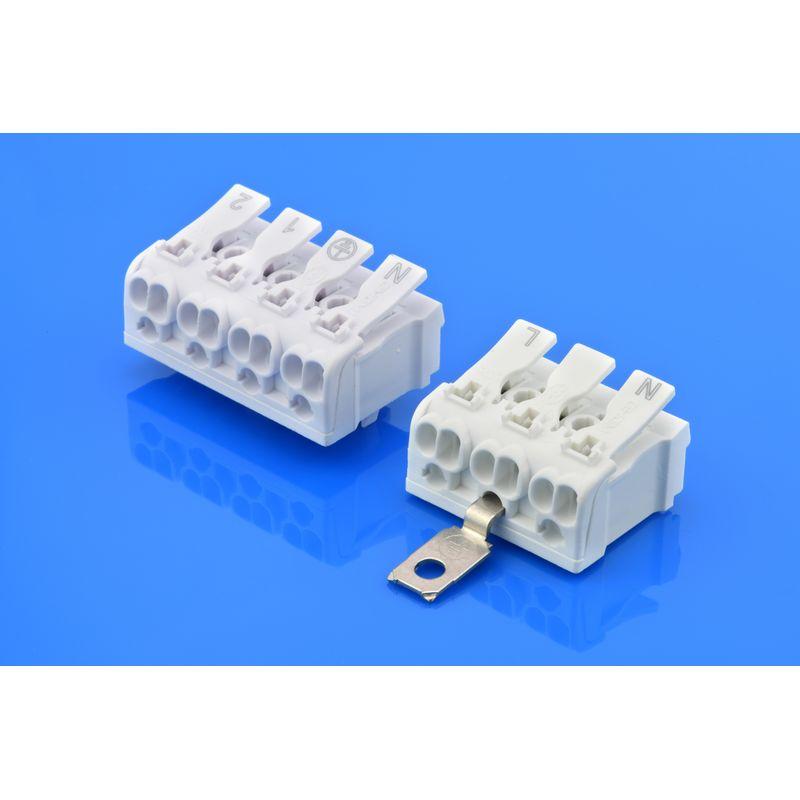

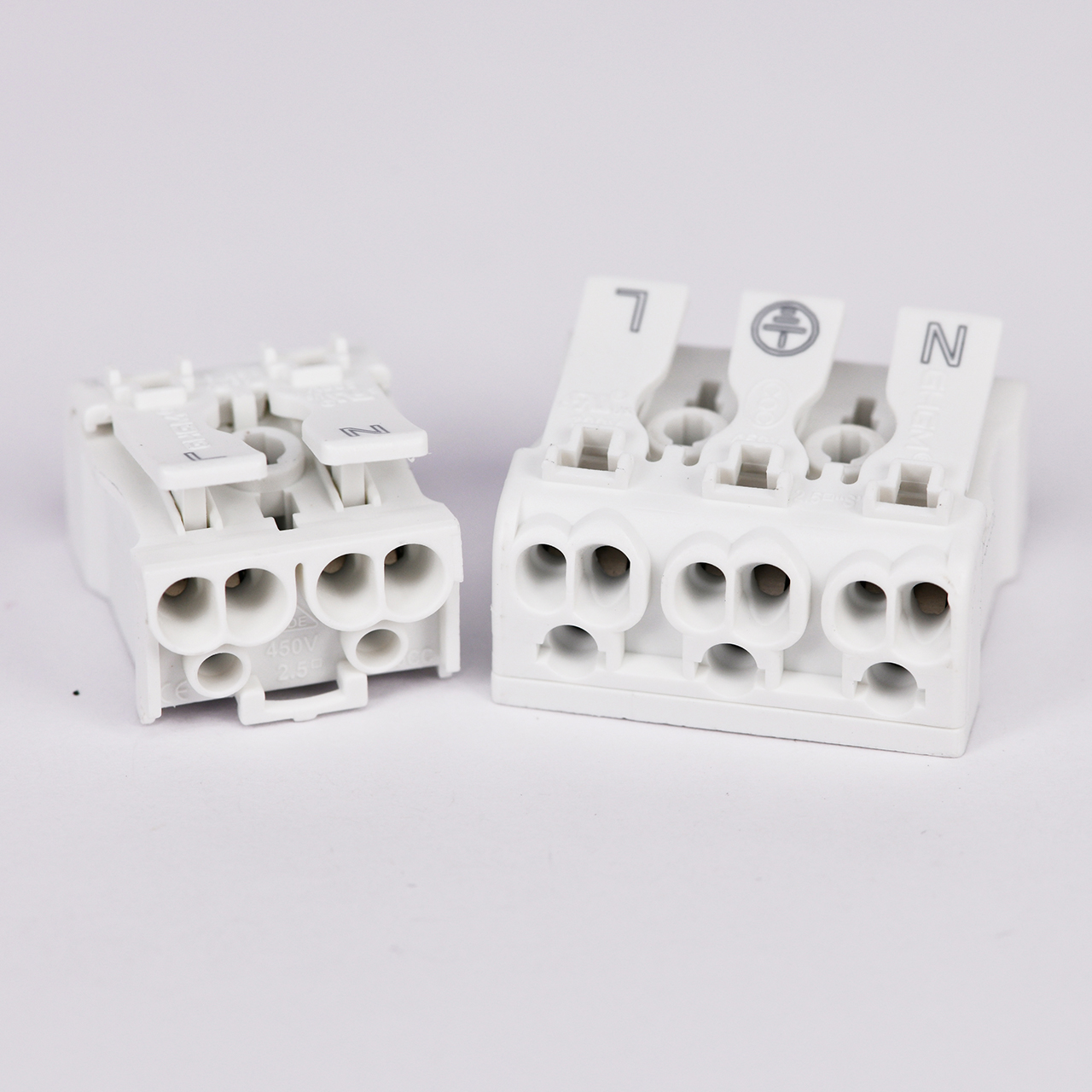

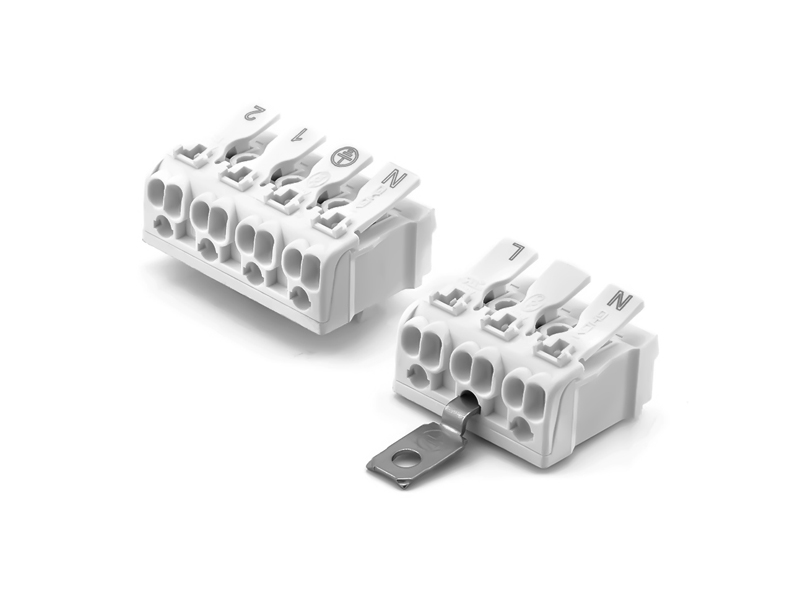

GH0923 2-5 pin, LED Lighting Terminal Block, Strip Connector 923, UL VDE, push wire connector

Product Description:GH0126 PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis 2 Pin/ 3 Pin Wire to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 10A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 10A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 10A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0301 15A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 15A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 15A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 15A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH5903 Mini GH0923 2-5 pin, LED Lighting Terminal Block, Strip Connector, UL VDE, push wire connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 9A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:The terminal module for power supply is used to connect lamps and other equipment. They are suitable for lighting, household appliances, etc., and can connect 0.75 to 2.5 mm2 single-strand, multi-strand and thin multi-strand wires. Various polar patches and clamps are availableVarious bottem type: T/J/flat bottom.Application:lighting, household appliances, etc.,Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0128 10A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 20A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 20A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0744 no push-button, Pin spacing 3.5 mm, 7A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit, PCB terminal block, Push-in CAGE CLAMP®This wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 3.5mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 7A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 7A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowing, Just 7.7 mm tallhis connector can be used safely for current of up to 7A.Available in 2-24 pole configurationsCompact terminal strips without push-buttonsPush-in terminations of solid and ferruled conductorsTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides easy, space-saving wiringCustom color combinationsTerminal strips also available with spacers upon requestApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0702, Connector box, mating with GH0923 2-5 pinProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-02.   Environmental Characteristic        2.1    Storage temperature range: -10℃~+50℃ Half a year        2.2    Operating temperature range: -40℃~+105℃3.   RoHS compliantFeatures and Advantages:Suitable for different GH0923 bottem type: T/J/flat bottom.Application:lighting, household appliances, etc.,Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH8005&GH8006 Pitch 0.635mm, floating board to board connector, multiple board connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Gold flash3.   Electrical performance:        3.1    Rated: Signal Pin, 50V/0.5A, Power Pin, 200V/50A        3.2    Insulation Resistance:  Signal Pin, 100MΩ min(Min)                                                                Power Pin, 1000MΩ min(Min)        3.3    Dielectric withstanding voltage:                                                     Signal Pin, 150VAC R.M.S/1m                                                    Power Pin, 600VAC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:As many devices has evolved to become more compact and high-functioning. The “floating connector” has been contributing to reduce the stress which occurs to connecting parts when screwing fastening to the PCB, as well as when having multiple connectors mounted on one single PCB.GHGM floating connector series has started from 0.5mm pitch, then it has progressed to 0.635mm, 0.8mm, and 0.4mm pitch connector.Application:Floating connectors have been used in wide range of applications from car infotainment systems for automotive applications as well as medical, manufacturing, regardless of industrial or consumer applications. Abundant options for number of pins and height variations make it possible for the floating connector to be flexible to use regardless of application.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0773, lighting connector, push in connector, 4 pin push in wire connectorThe GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 4, 6 or 8 wirbHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
