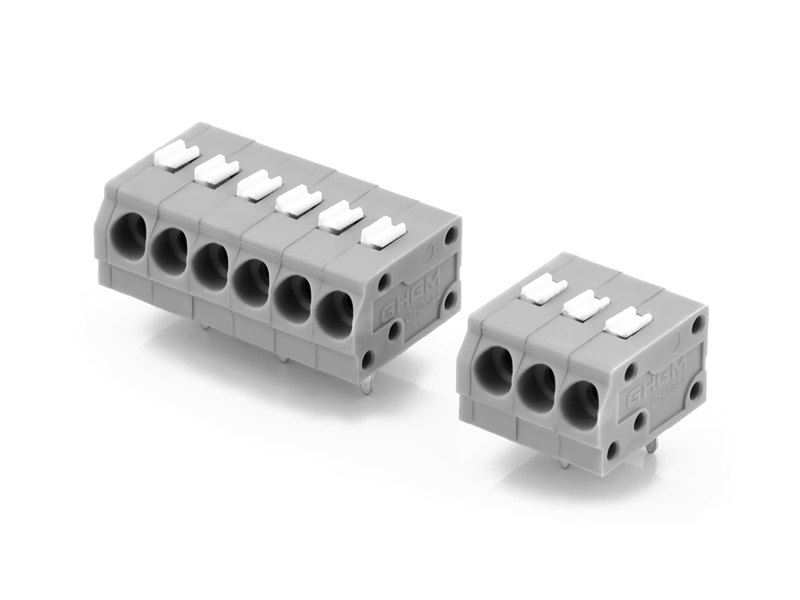

GH0744 no push-button, Pin spacing 3.5 mm, 7A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit, PCB terminal block

Product Description:

GH0744 no push-button, Pin spacing 3.5 mm, 7A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit, PCB terminal block, Push-in CAGE CLAMP®

This wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 3.5mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 7A.

Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

        1.2    Terminals: Copper Alloy

2.   Plating: Terminals: Matte-in

3.   Electrical performance:

        3.1    Voltage Rated: 300V (AC/DC)

        3.2    Current Rated: 7A

        3.3    Insulation Resistance: 100MΩ min

        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant

Features and Advantages:

• Low profle minimizes on-board shadowing, Just 7.7 mm tall


• his connector can be used safely for current of up to 7A.


• Available in 2-24 pole configurations

• Compact terminal strips without push-buttons

• Push-in terminations of solid and ferruled conductors

• Termination/removal of fine-stranded conductors via push-buttons

• 45° conductor entry angle provides easy, space-saving wiring

• Custom color combinations

• Terminal strips also available with spacers upon request

Application:

• Power Supply connector

• Printed Circuit Board (PCB)


Certificate:

• The quality control have the first priority in GHGM.


• Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

• Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

• Invention and Patents: US, Germany, Japan, China

Packing and Shipping:

• We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

• Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

• These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
