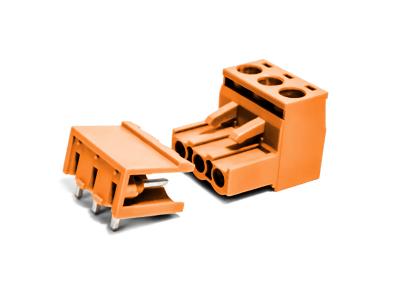

Product Description:GH0301 15A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 15A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 15A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 15A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0773, lighting connector, push in connector, 4 pin push in wire connectorThe GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 4, 6 or 8 wirbHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0221, lighting connector, push in connector, lever connectors for building wiringThe GHGM Lever Connector is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These Lever connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation. Property Details:1.   Materials:        1.1    Housing: PA66+PC        1.2    Conductive part: Copper Alloy        1.3    Spring: Stainless steel2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    withstanding voltage: 3000V AC R.M.S/1m        3.5    Strip Length: 10mm        3.6    Cross section: 14~24AWG(Sol&Str)4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Clear shell gives visual verification of connectionNo-twist connection reduces repetitive-motion fatigueLow insertion force for fast and easy connectionsCompact size makes installation easyApplication:Joining and insulating 2, 3, 5 wireHardware worksopCertificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:F5014 2pin AWG18-20, pitch 3.4mm, wiring LED bulb light connector, LED light connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:F5027 2pin AWG24, pitch 2.54mm, wiring LED bulb light connector, LED light connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:F5034A low profile LED light connector, 2pin AWG24, pitch 2.54mm, wiring LED bulb light connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:J0018 Metal AWG24, Copper LED bulb light connector, LED light connectorProperty Details:1.   Materials: Copper Alloy2.   Plating: Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingAvailalbe Printed circuit board (PCB), thickness: 1.0-1.2mm Delivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:J0011 Clamp wire connector, metal connector, AWG24, Copper LED bulb light connector, LED light connectorProperty Details:1.   Materials: Copper Alloy2.   Plating: Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingAvailalbe Printed circuit board (PCB), thickness: 1.0-1.2mm Delivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:F5004 low profile LED light connector, 2pin AWG24, pitch 3.3mm, wiring LED bulb light connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:F5005 low profile LED light connector, 2pin AWG24, pitch 2.5mm, wiring LED bulb light connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:F5008 low profile LED light connector, 2pin AWG24, pitch 2.5mm, wiring LED bulb light connectorProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:M5009 Male connector, 2 Pin Needle Connector Adapter Male Double Insert For RGB LED Strip Light Tape LightProperty Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Nickel 50u" min underplated                                             Tin 80u" min on solder tail ar3.   Electrical performance:        3.1    Voltage Rated: 275V (AC/DC)        3.2    Current Rated: 1A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m        3.5    Contact Resistance: 60mΩ MAX. (Initial)                                                            100Ω MAX. (After life test)4.   RoHS compliant5.   Environmental Characteristic        5.1    Storage temperature range: -10℃~+50℃ Half a year        5.2    Operating temperature range: -40℃~+105℃Features and Advantages:Low profle minimizes on-board shadowingTerminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costsDelivery in tape-and-reel packaging for full integration into SMT soldering processPotential for significant savings via automated pick-and-place assemblyApplication:LED light bulbLED strip light connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
