GH0773-2pole, lighting connector, pitch 4.0mm push in connector, 4 pin push in wire connector

Product Description:

GH0773-2pole, lighting connector, pitch 4.0mm push in connector, 4 pin push in wire connector

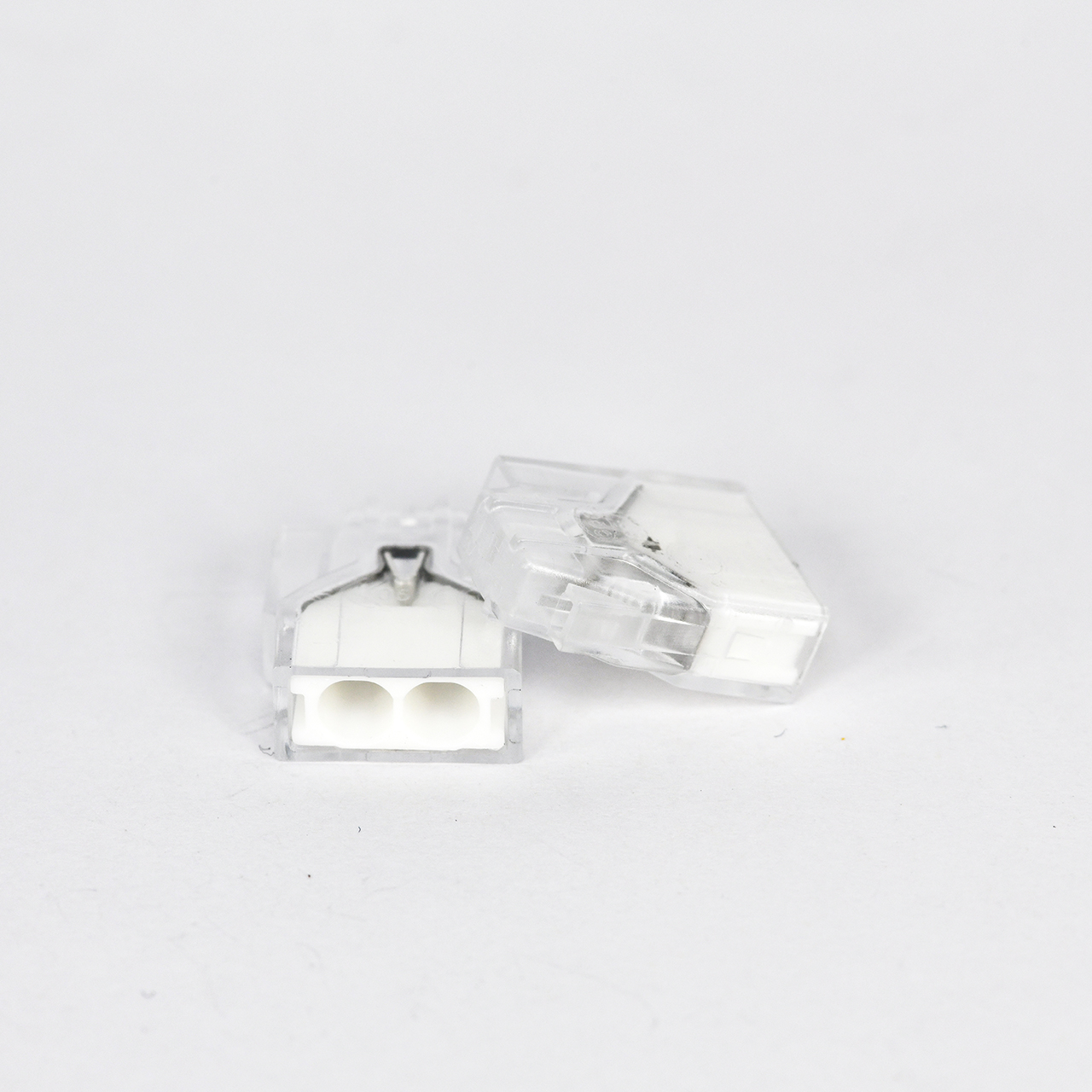

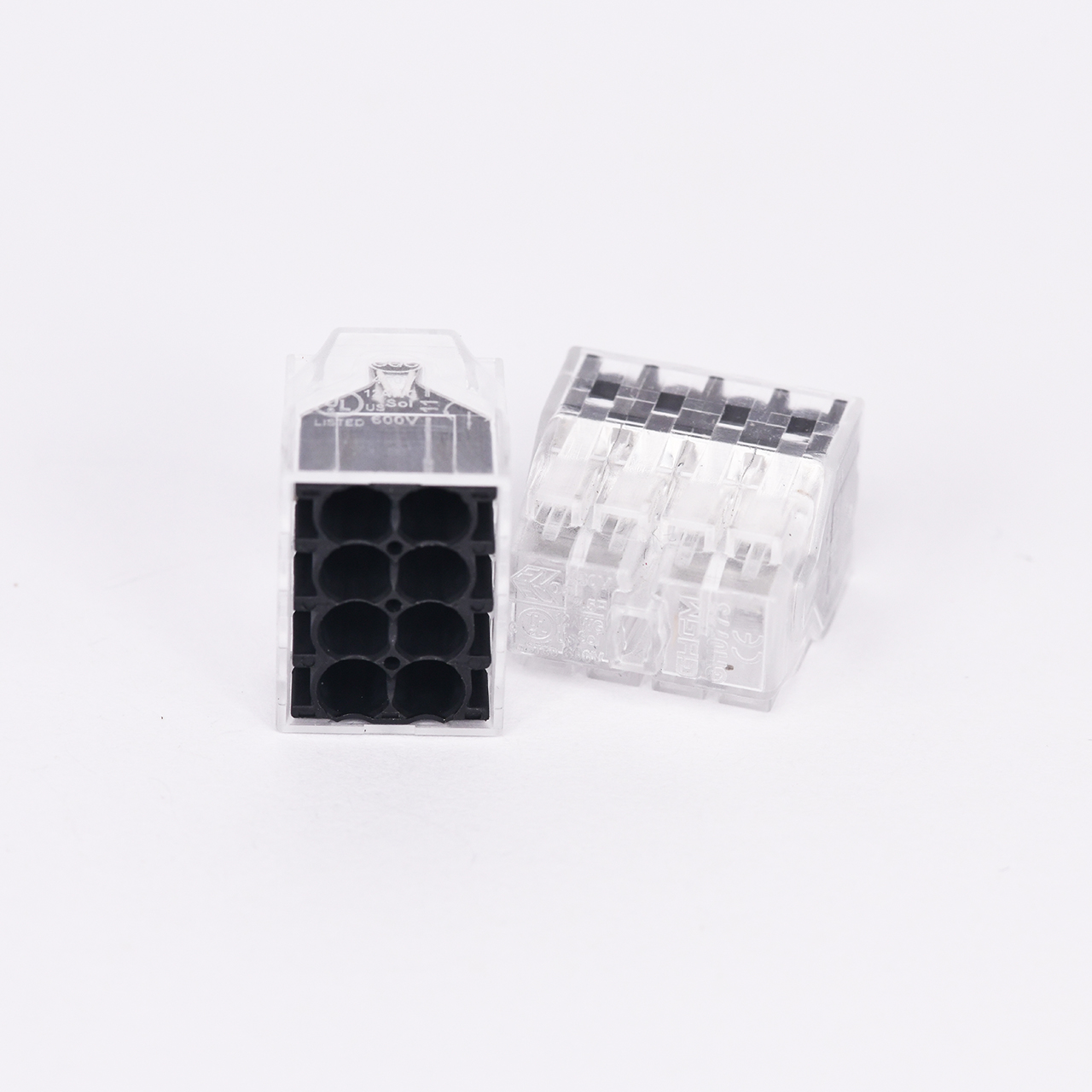

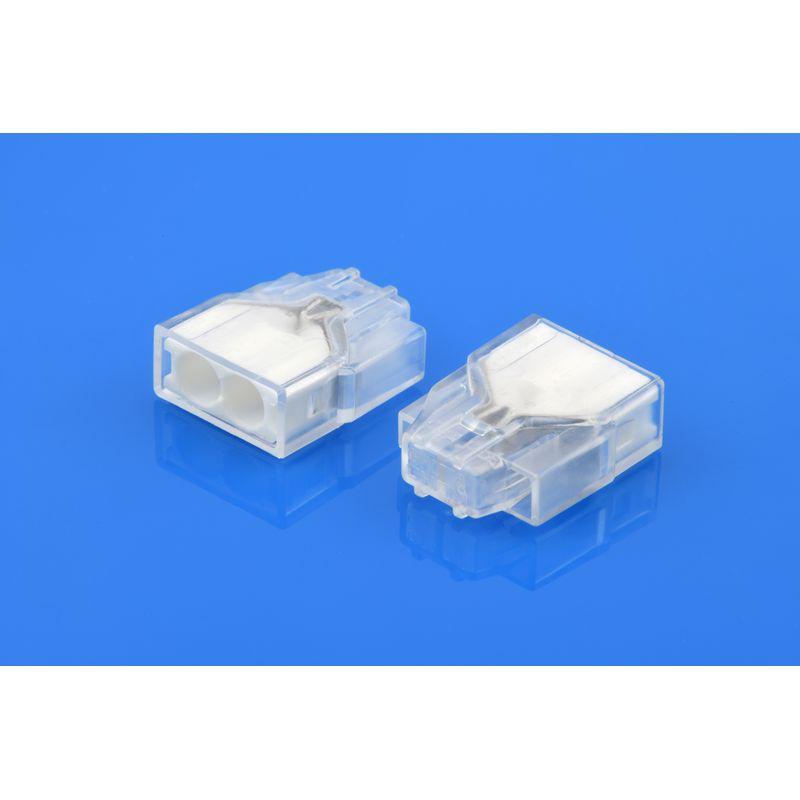

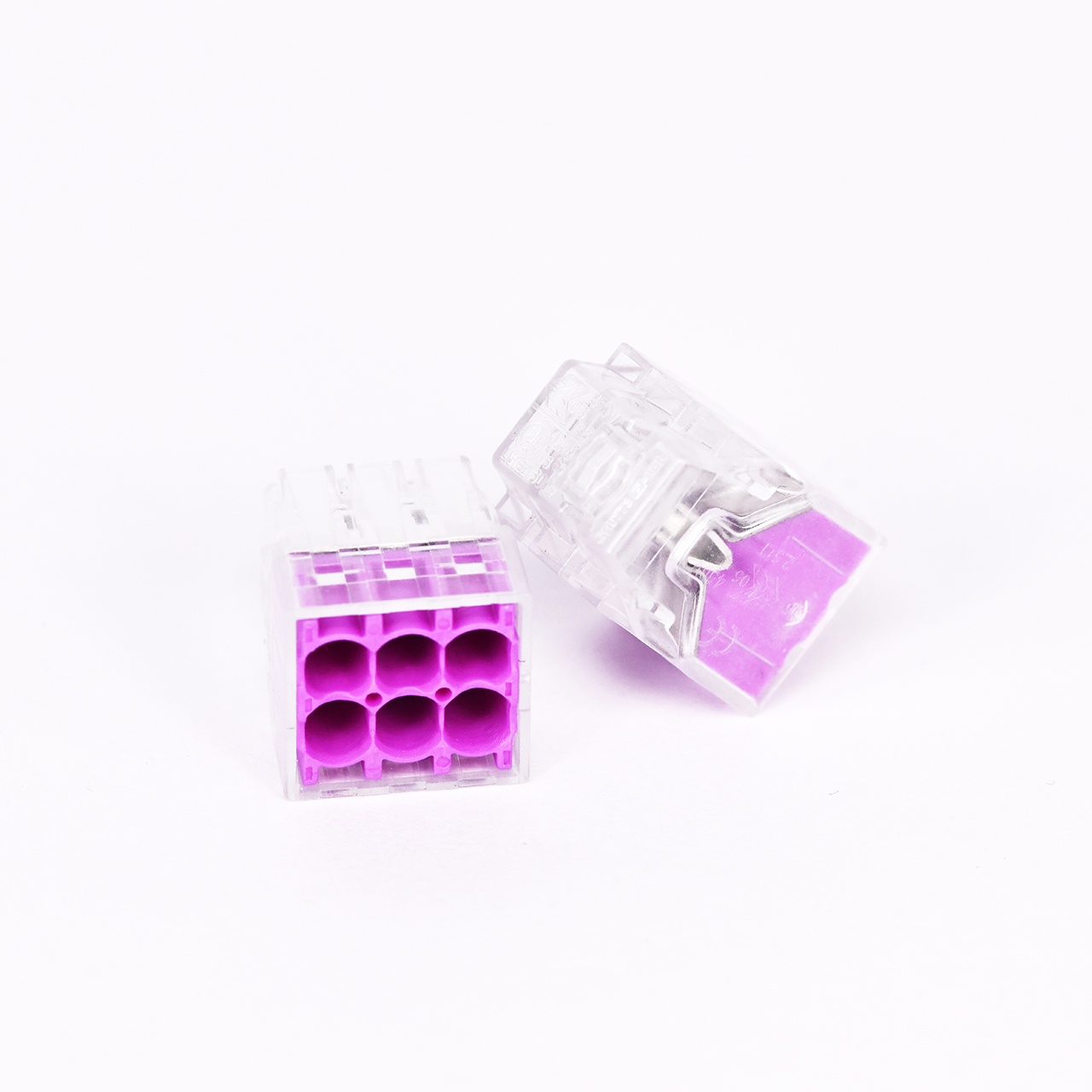

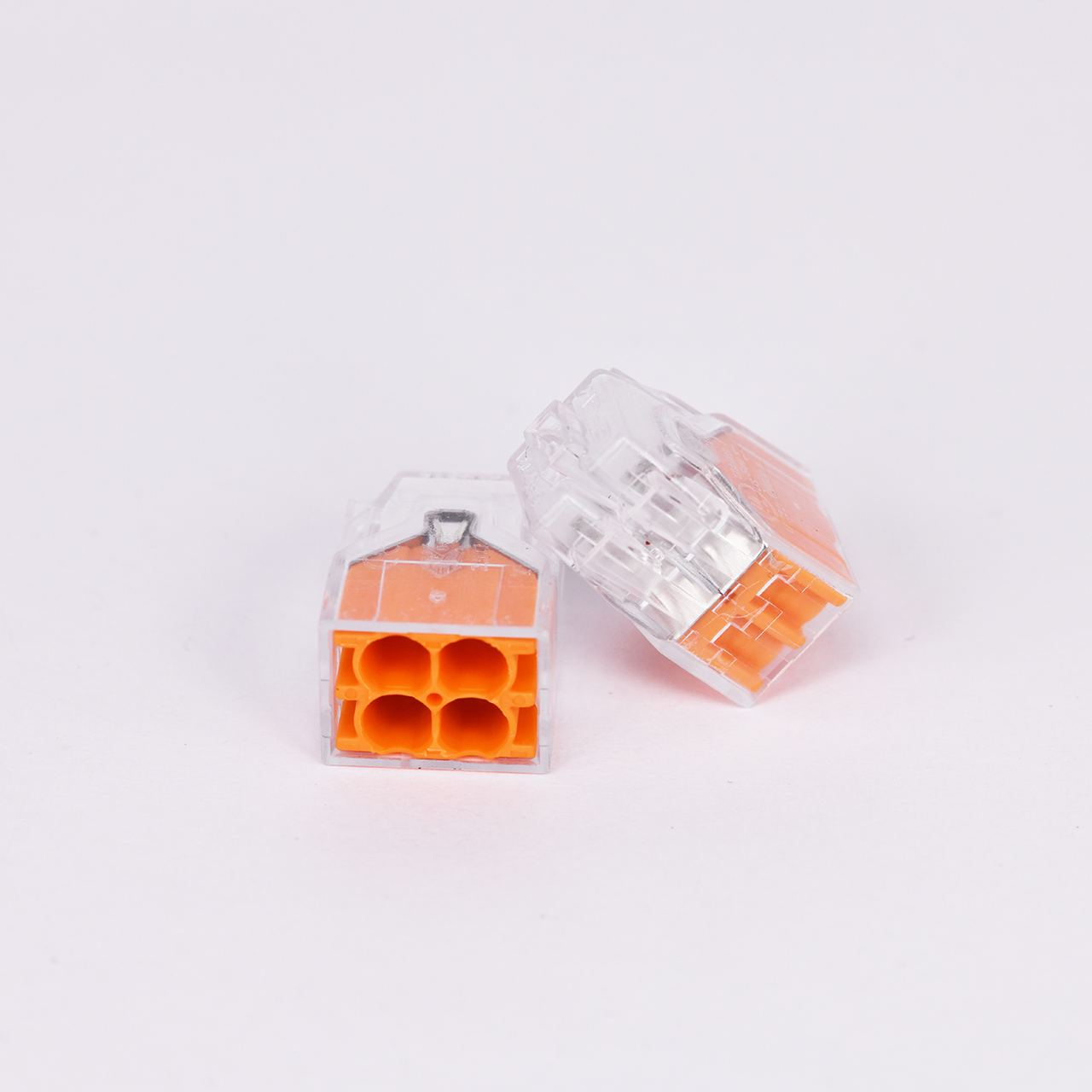

The GHGM Push-In Wire Connector Set is an excellent choice for joining and insulating 2, 3, 4, 6 or 8 wires. These push-in wire connectors feature a clear, tough, UL 94-Volt-2 flame-retardant shell and a compact size for easy installation.

Property Details:

1.   Materials:

        1.1    Housing: PA66+PC

        1.2    Conductive part: Copper Alloy

        1.3    Spring: Stainless steel

2.   Plating: Terminals: Matte-in

3.   Electrical performance:

        3.1    Voltage Rated: 600V (AC/DC)

        3.2    Current Rated: 20A

        3.3    Insulation Resistance: 100MΩ min

        3.4    withstanding voltage: 3000V AC R.M.S/1m

        3.5    Strip Length: 10mm

        3.6    Cross section: 14~24AWG(Sol&Str)

4.   Environmental Characteristic

        4.1    Storage temperature range: -10℃~+50℃ Half a year

        4.2    Operating temperature range: -40℃~+105℃

5.   RoHS compliant

Features and Advantages:

• Clear shell gives visual verification of connection

• No-twist connection reduces repetitive-motion fatigue


• Low insertion force for fast and easy connections


• Compact size makes installation easy

Application:

• Joining and insulating 2, 3, 4, 6 or 8 wire

• Hardware worksop

Certificate:

• The quality control have the first priority in GHGM.


• Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

• Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

• Invention and Patents: US, Germany, Japan, China

Packing and Shipping:

• We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

• Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

• These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
