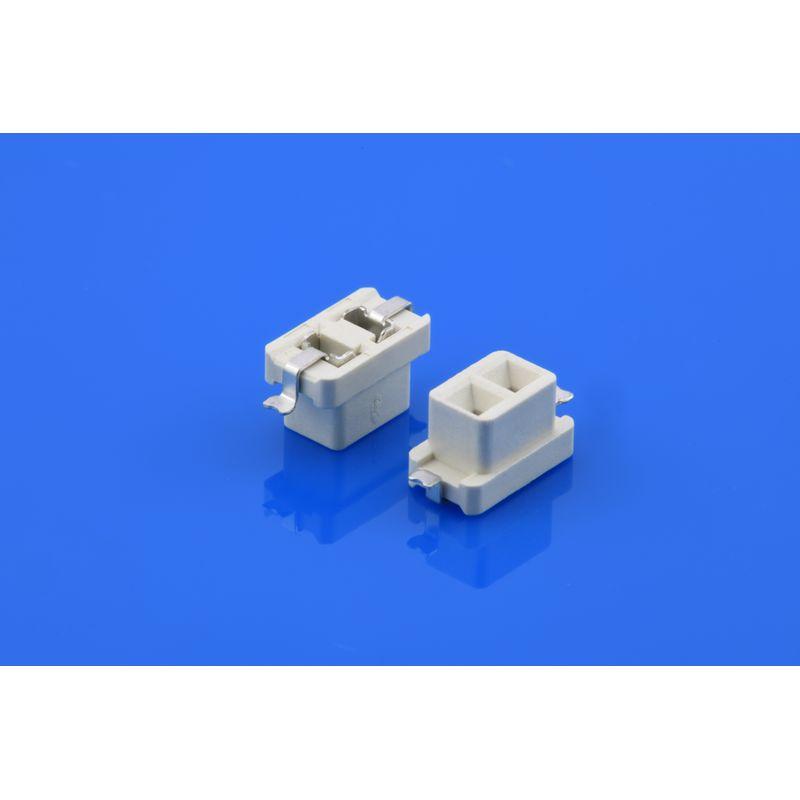

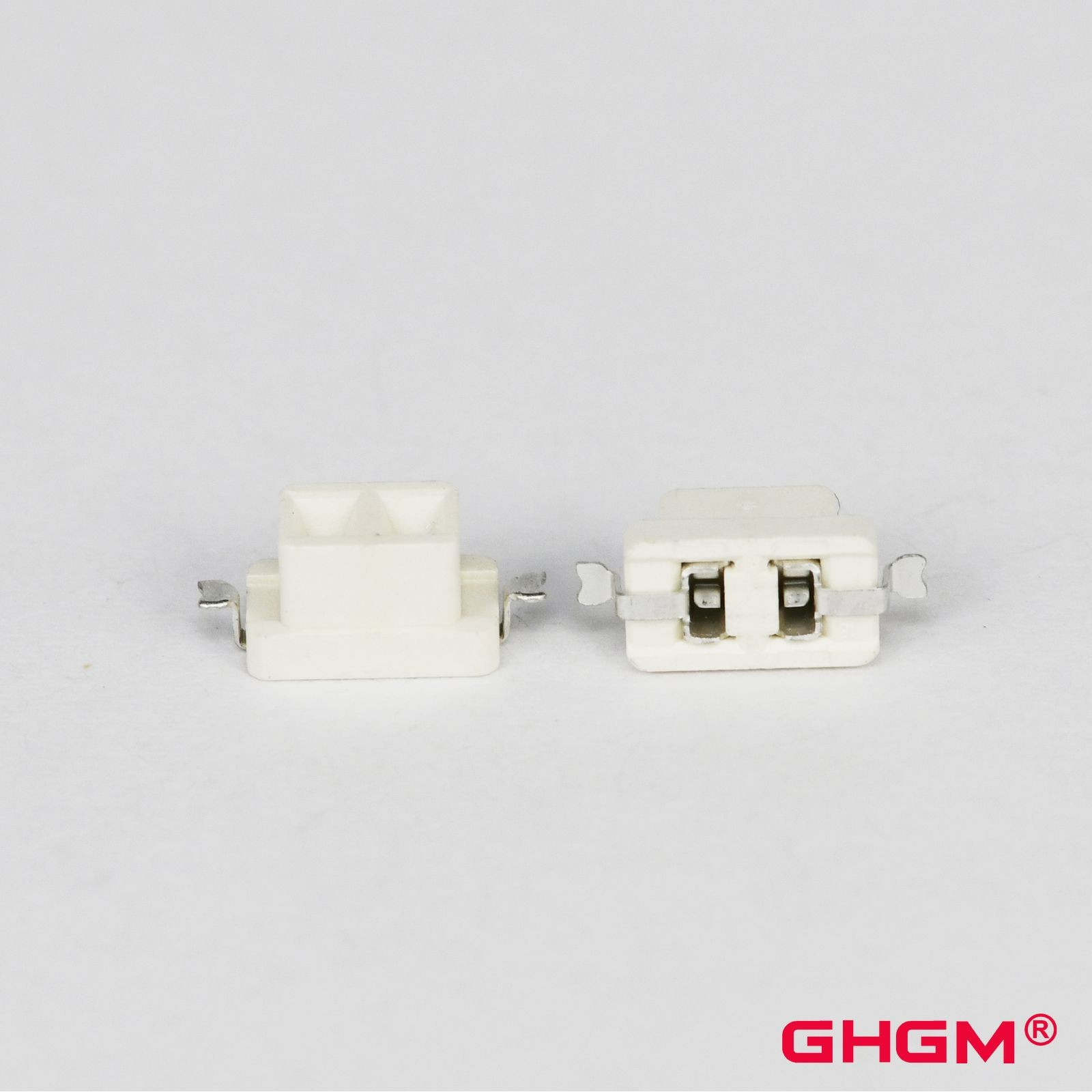

F5023 low profile LED light connector, 2pin AWG24, pitch 2.5mm, wiring LED bulb light connector, mating with SQ0.50 male connector

Product Description:

F5023 low profile LED light connector, 2pin AWG24, pitch 2.5mm, wiring LED bulb light connector, mating with SQ0.50 male connector

Property Details:

1.   Materials:

        1.1    Housing: LCP UL94 V-0

        1.2    Terminals: Copper Alloy

2.   Plating: Terminals: Nickel 50u" min underplated

                                             Tin 80u" min on solder tail ar

3.   Electrical performance:

        3.1    Voltage Rated: 275V (AC/DC)

        3.2    Current Rated: 1A

        3.3    Insulation Resistance: 100MΩ min

        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m

        3.5    Contact Resistance: 60mΩ MAX. (Initial)

                                                            100Ω MAX. (After life test)

4.   RoHS compliant

5.   Environmental Characteristic

        5.1    Storage temperature range: -10℃~+50℃ Half a year

        5.2    Operating temperature range: -40℃~+105℃

Features and Advantages:

• Low profle minimizes on-board shadowing


• Terminal strips of different lengths can be mounted without losing any poles allowing for a reduced number of variants and lower production costs


• Delivery in tape-and-reel packaging for full integration into SMT soldering process


• Potential for significant savings via automated pick-and-place assembly

Application:

• LED light bulb

• LED strip light connector

• Printed Circuit Board (PCB)

Certificate:

• The quality control have the first priority in GHGM.


• Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

• Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQC

• Invention and Patents: US, Germany, Japan, China

Packing and Shipping:

• We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.

• Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.

• These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.
